| Management number | 209357195 | Release Date | 2026/03/29 | List Price | US$22.95 | Model Number | 209357195 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

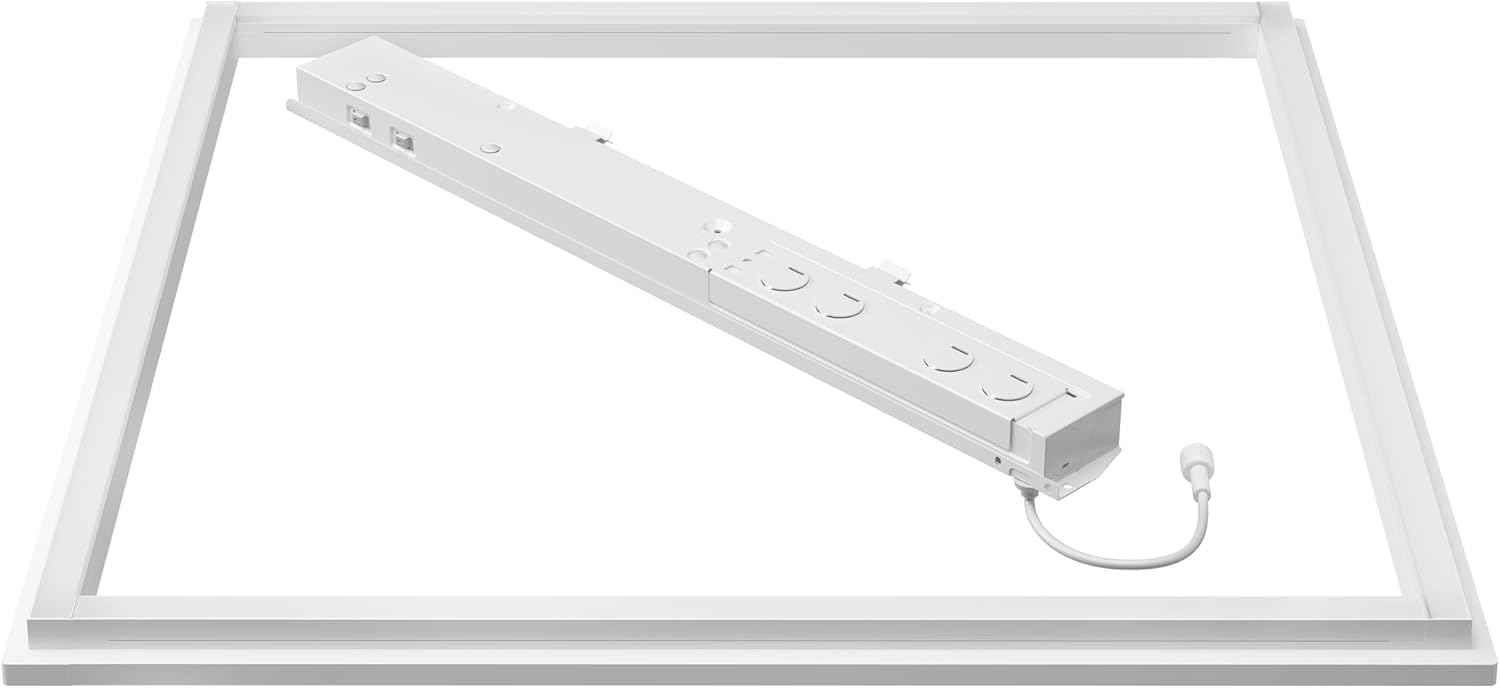

The FRAME LED Lay-in ceiling light combines sleek, modern design with advanced lighting technology to deliver exceptional performance and style. Simple and Stylish, the FRAME is perfect for commercial office, healthcare, retail, and educational applications. Engineered with cutting-edge optical technology, the FRAME provides the same brightness and energy efficiency as traditional LED flat panels, but at a fraction of the weight and cost. Its customizable features, including switchable color temperatures (3500K, 4000K, and 5000K) and adjustable lumen output (3000LM, 4000LM, and 5000LM), allow you to fine-tune the light to suit any space. Ideal for distributors and installers, its compact packaging saves storage space, while switchable lumens accommodate varying ceiling heights. The "snap-together" design ensures simple installation into standard 15/16-inch and narrow 9/16-inch T-grid systems—no cutting required. Built for durability, it features long-life LEDs, a high-efficiency driver, and is certified for damp locations. With dimensions of 23.8" x 23.8" x 0.99", it operates on MVOLT 120-277 VAC, supports 0-10V dimming down to 10%, and offers 80% lumen maintenance at 60,000 hours. With CSA, IC, and DLC Premium certifications, damp location certification, and a 5-year warranty, the FRAME is the ultimate in customizable, reliable, and efficient lighting.
| UPC | 197589570403 |
|---|---|
| Color | White |
| Shape | Square |
| Voltage | 120277 Volts |
| Wattage | 39.4 watts |
| Bulb Base | Flanged |
| Room Type | Classroom, Conference Room, Game Room, Library |
| Brand Name | Lithonia Lighting |
| Brightness | 5000 lumen |
| Efficiency | 76.14 lumens per watt, 102.03 lumens per watt, 76.14 lumens per watt |
| Model Name | LED |
| Style Name | Panel |
| Unit Count | 1.0 Count |
| Item Weight | 2.4 Pounds |
| Light Color | White |
| Shade Color | White |
| Switch Type | Push Button |
| Finish Types | White |
| Fixture Type | Non Removable |
| Light Source | LED |
| Manufacturer | Acuity Brands Lighting Inc. |
| Model Number | LFRM 2X2 ALO3 SWW7 MVOLT M6 |
| Power Source | AC/DC |
| Material Type | Aluminum |
| Mounting Type | Ceiling Mount |
| Warranty Type | Lifetime |
| Control Method | Push Button |
| Item Type Name | Lay In Ceiling Light with Lightweight Design and Switchable Technology |
| Shade Material | Aluminum |
| Lighting Method | Downlight |
| Number of Items | 1 |
| Installation Type | Ceiling Mount |
| Required Assembly | No |
| Specification Met | CSA |
| Light Fixture Form | Close to Ceiling |
| Included Components | LED Lens, Mounting Hardware |
| Indoor Outdoor Usage | Indoor |
| Water Resistance Level | Water Resistant |
| Number of Light Sources | 1 |
| Item Dimensions L x W x H | 27.7"L x 23.8"W x 1"H |
| Specific Uses For Product | Home |
| Manufacturer Warranty Description | 5 year limited. |
| Global Trade Identification Number | 00197589570403 |
| Other Special Features of the Product | Adjustable Color Temperature, Dimmable, Energy Efficient, Water Resistant |
